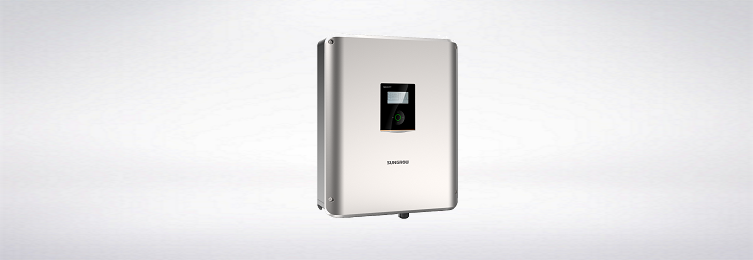

SH5K-20 Residential Hybrid Inverter
- Integrated optimised energy management system, battery usage strategies and smart home load control
- Energy trading ready with external EMS to maximise payback on your investment
- Monitoring via smartphone or laptop, providing email reports and alerts.For new and existing systems.
- Backup for essential loads in the event of a grid interruption or blackout
- Integrated high-frquency isolated battery charge/discharge circuit
- Protection rating at IP65 (dust-proof and water-proof)
- For both new installation and retrofitting solar systems
- Compatible with both lithium-ion and leadacid batteries
- Easy commissioning and customisable settings via LCD
- Auto-identification of lithium-ion batteries
- One-click firmware update via Wi-Fi or Ethernet, easy for maintenance and management
Technical Data
PV Input Data
Max. PV input power | 6500 W |
Max. PV input voltage | 600 V |
Startup voltage | 125 V |
Nominal input voltage | 350 V |
MPP voltage range | 90 V–560 V |
MPP voltage range for nominal power | 210 V–480 V |
No. of MPPTs | 2 |
Max. number of PV strings per MPPT | 1/1 |
Max. PV input current | 22 A (11 A / 11 A) |
Max. current for input connector | 24 A (12 A / 12 A) |
Short-circuit current of PV input | 24 A (12 A / 12 A) |
AC Input and Output Data
Max. AC input power | 3000 W |
Nominal AC output power | 4990 W |
Nominal AC output current | 21.6 A |
Max. AC output apparent power | 5000 VA |
Max. AC output current | 21.7 A |
Nominal AC voltage | 230 Vac |
AC voltage range | 180 Vac–276 Vac (this may vary with grid standards) |
Nominal grid frequency | 50 Hz |
Grid frequency range | 45 Hz–55 Hz (this may vary with grid standards) |
Total Harmonic Distortion (THD) | < 3% (of nominal power) |
DC current injection | < 0.5% (of nominal current) |
Power factor | > 0.99 at default value at nominal power, (adj. 0.8 overexited/leading–0.8 underexited/lagging) |
Backup Data
Nominal voltage | 230 Vac (± 2%) |
Total hamonic factor output voltage | 2% (full resistive load) |
Frequency range | 50 Hz (± 0.2%) |
Switch time to emergency mode | 3 s |
Power factor | 0.8 overexited/leading–0.8 underexited/lagging |
Max. output power | 5000 W / 5000 VA |
Max. output power (battery) | 3000 W / 3000 VA |
Battery Data
Battery type | Li-ion battery / Lead-acid battery |
Battery voltage | 48 V (32 V–70 V) |
Max. charge / discharge current | 65 A / 65 A |
Mechanical Data
Dimensions (W×H×D) | 457 mm × 515 mm ×170 mm |
Mounting method | Wall-mounting bracke |
Weight | 22 kg |
Proctection
Anti-islanding protection | Yes |
AC short circuit protection | Yes |
Leakage current protection | Yes |
DC fuse (battery) | Yes |
DC switch (solar) | Optional |
Overvoltage category | III [Main], II [PV] [Battery] |
System Data
Max. efficiency | >97.7% |
Max. European efficiency | >97.2% |
Max. charge/discharge efficiency | >94.0% |
Isolation method (solar) | Transformerless |
Isolation method (battery) | HF |
Ingress protection rating | IP65 |
Operating ambient temperature range | -25℃ to 60℃ (>45℃ derating) |
Relative humidity range | 0–100% |
Cooling method | Nature convection |
Max. operating altitude | 2000 m |
Display | Graphic LCD |
Communication | 2 × RS485, Wi-Fi (optional), CAN, Ethernet |
Analogue input | PT1000 |
Power management | 1 × Digital Output |
Earth alarm | 1 × Digital Output, email, buzzer inside |
PV connection type | MC4 |
AC connection type | Clamping yoke connector |
Certification | AS4777, IEC 62109-1, IEC 62109-2, IEC62477-1, IEC 62040-1, EN 61000-6-1/-3 |
